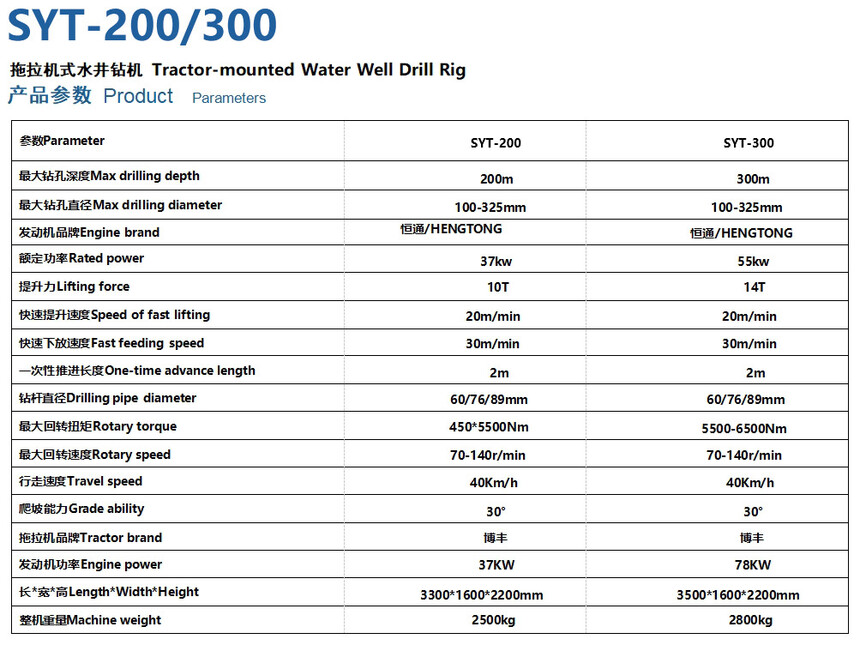

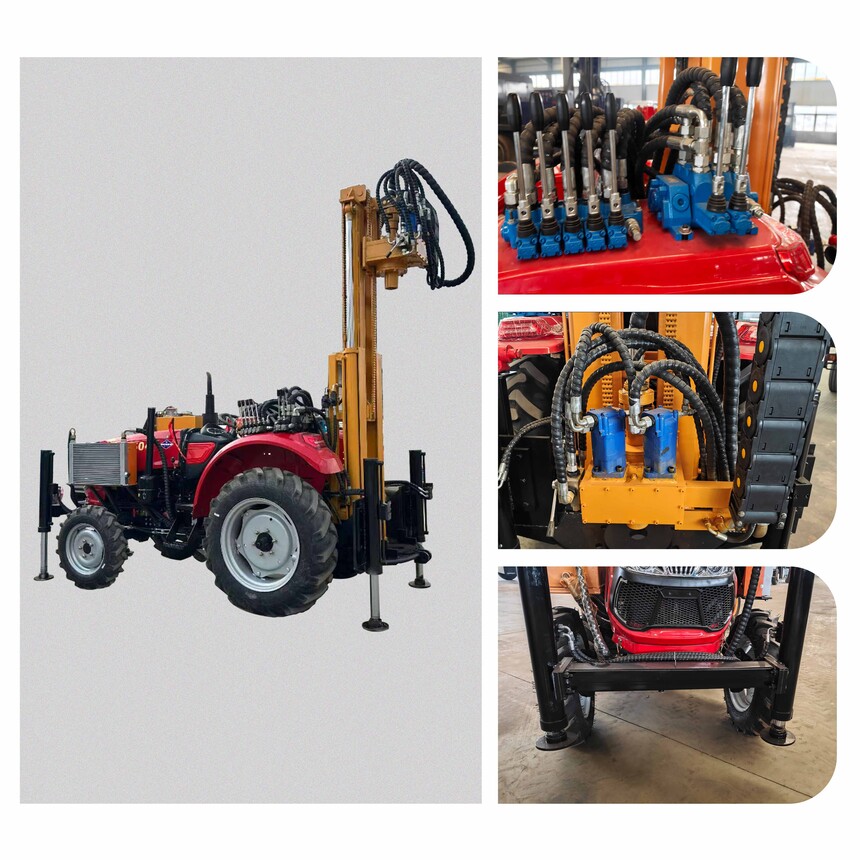

SYT-200/300 Tractor Water Well Drill Rig | 200m/300m Deep Borehole Drilling Equipment

1. Dual-Model Flexibility for All Drilling Needs

• SYT-200: 200m max drilling depth, ideal for residential, small-scale agricultural, and shallow well projects.

• SYT-300: 300m max drilling depth, built for deep commercial, industrial, and large-scale irrigation wells.

• Both models support a 100-325mm diameter range, covering all common well casing sizes.

2. Powerful, Reliable Performance

• Equipped with Hengtong engines (37kW for SYT-200, 55kW for SYT-300) paired with robust Bofeng tractor chassis, delivering consistent power in harsh terrains.

• High rotary torque: 450-5500Nm (SYT-200) / 5500-6500Nm (SYT-300) for efficient penetration through soil, sand, and rock formations.

• 70-140r/min rotary speed ensures fast, smooth drilling operations.

3. Efficient Operation & High Lifting Capacity

• 10T (SYT-200) / 14T (SYT-300) lifting force for easy drill pipe handling and retrieval.

• Fast lifting (20m/min) and feeding (30m/min) speeds cut down cycle time, boosting daily drilling output.

• 2m one-time advance length reduces frequent rod connections, saving labor and time.

4. Mobility & Off-Road Capability

• Tractor-mounted design for 40km/h road travel, enabling quick relocation between job sites without heavy transport.

• 30° grade climbing ability for access to remote, hilly, and uneven terrain.

• Compact footprint (3300×1600×2200mm / 3500×1600×2200mm) for easy maneuvering in tight spaces.

5. Durable & Low-Maintenance Build

• Heavy-duty construction with 2500kg (SYT-200) / 2800kg (SYT-300) machine weight, built for long-term, high-intensity use.

• Standard drill pipe sizes (60/76/89mm) for global compatibility and easy parts replacement.

• Minimal maintenance requirements, designed for reliable performance in remote drilling projects.

6. Versatile Application

• Residential & commercial water well drilling

• Agricultural irrigation wells

• Geothermal boreholes

• Exploration & geotechnical drilling

• Rural water supply projects
